Converting 220V AC to 5V DC without using a transformer is challenging because transformers are commonly used to step down high voltages to lower voltages. However, there are alternative methods that can be used to achieve this conversion.

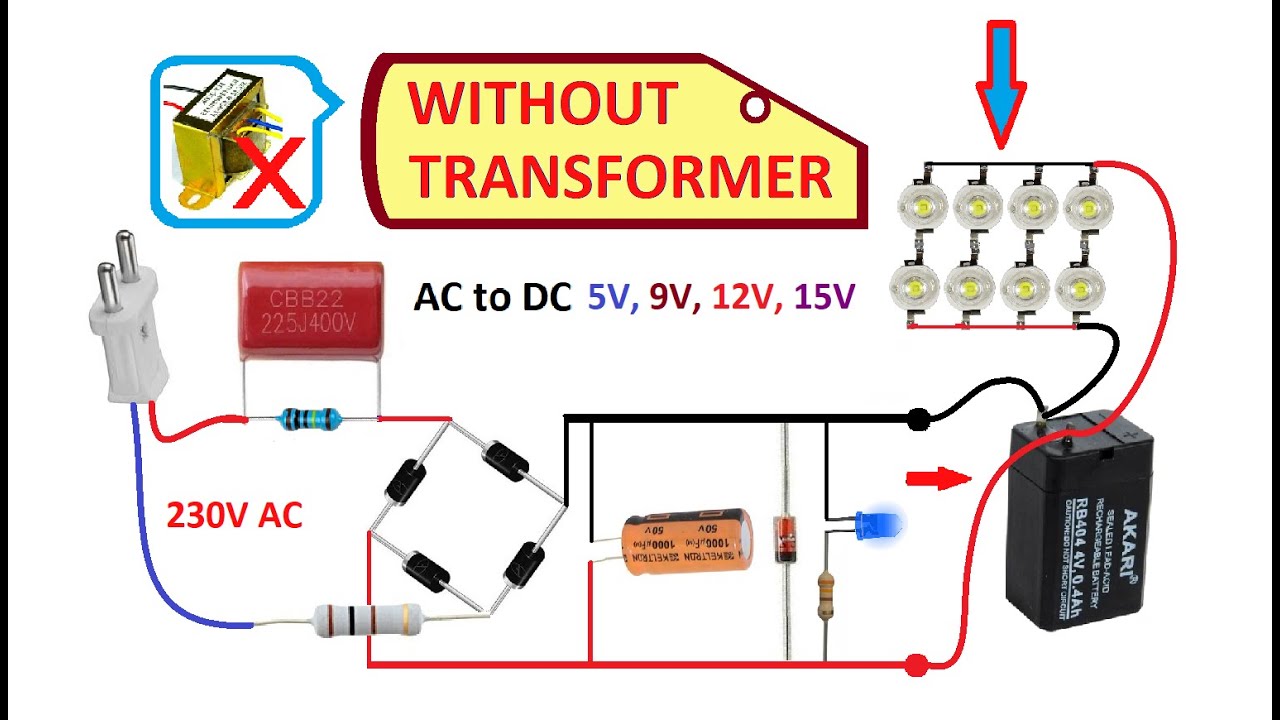

Here's a simple circuit that can be used to convert 220V AC to 5V DC without a transformer:

Bridge Rectifier: Start by rectifying the AC voltage using a bridge rectifier circuit. This circuit converts AC voltage into pulsating DC voltage.

Capacitor Filter: Connect a large electrolytic capacitor across the output of the bridge rectifier. This capacitor acts as a filter and smoothens the pulsating DC voltage, reducing the ripple.

This is simple idea/ tricks/ circuit of electronics. You can make this circuit at your home easily. To make this circuit you might need this type of electronics parts. The parts name have been given below.

Equipment:

1. Capacitor - 470uf/ 35 Volt

2. Diode - 4007

3. PF - 105k/ 250 Volt

4. Resistor - 470 k/ohm

5. Zener Diode - 5 Volt

6. Soldering iron

7.Digital Meter

8. connection Wire/ Cable
