How to use a pulse generator time relay GRT8-M1 J-mode | Geya Electric

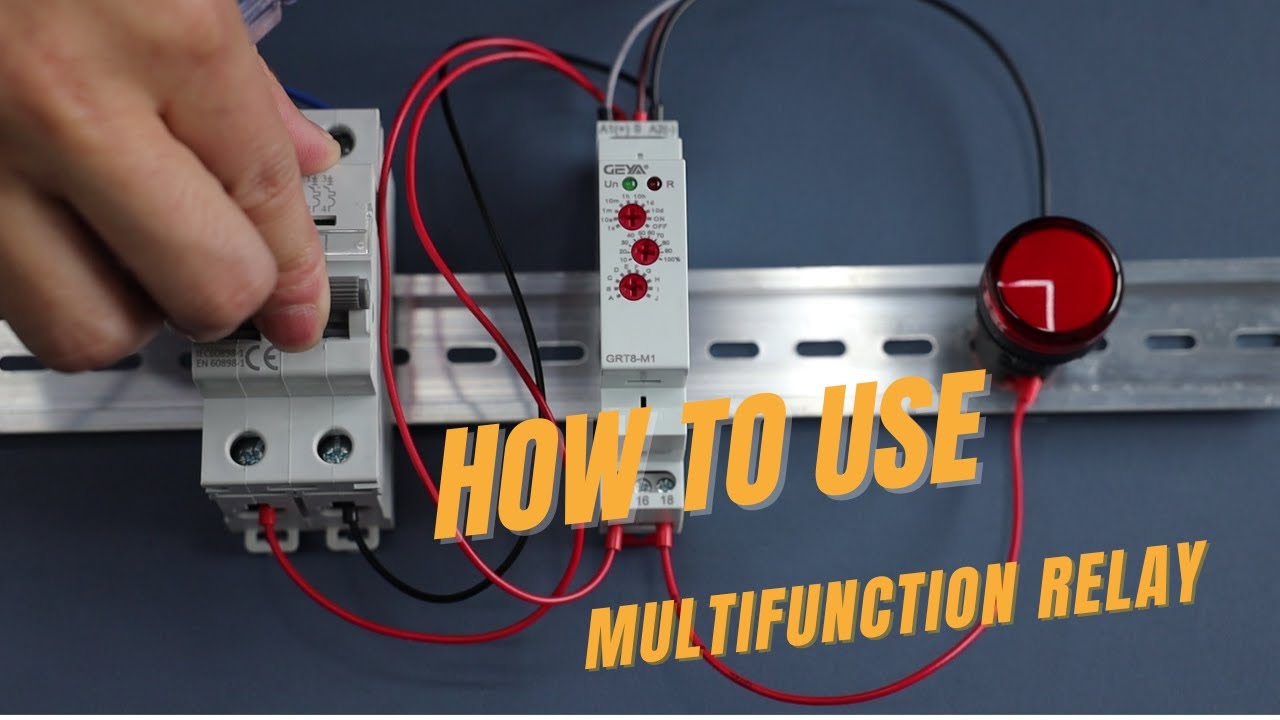

In this video, we are going to demenstrate the pulse generator of Geya's time relay GRT8-M1. This video will help you learn how to select the function mode and how to configure the delay time. And you will see how the time relay works by the J-mode pulse generator.
In this video, we are going to demonstrate the I-mode of multi-function time relay GRT8-M1. I-mode is the function of latching relay, which switches the load by signal triggering. You will clearly know how to change the load from this video.
, I am going to introduce how to use the H mode (On/Off Delay) of multi-function time relay GRT8-M1.
The on/off delay is controlled by the signal. Hold down the button, the timing starts. After the timing delay, the light comes on.
Release the button, the timing is happening. After timing delay, the light goes off.
, we are going to demonstrate how to use the delay on single-function time relay GRT8-A1 from Geya Electric.
For this relay, we control the timing delay by powering up. After power on, the load is connected after the set delay time. Power off, the load is
disconnected.
we could wire a button to A1 and S terminal for reset. After the timing delay is applied, press the button to reset, and the relay starts over to delay again.
Product Applications：Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps, and fans (10 functions, 10-time ranges, multi-voltage).
Function Features：
（1）10 functions:
5-time functions controlled by supply voltage
– 4-time functions controlled by control input
– 1 function of latching relay
（2）Comfortable and well-arranged function and time-range set by rotary switches.
（3）Time scale 0.1 s – 10 days divided into 10 ranges.
（4）Relay status is indicated by LED.
（5）1-MODULE, DIN rail mounting.
How to use a pulse generator time relay GRT8-M1 J-mode | Geya Electric
In this video, we are going to demenstrate the pulse generator of Geya's time relay GRT8-M1. This video will help you learn how to select the function mode and how to configure the delay time. And you will see how the time relay works by the J-mode pulse generator.
In this video, we are going to demonstrate the I-mode of multi-function time relay GRT8-M1. I-mode is the function of latching relay, which switches the load by signal triggering. You will clearly know how to change the load from this video.
, I am going to introduce how to use the H mode (On/Off Delay) of multi-function time relay GRT8-M1.
The on/off delay is controlled by the signal. Hold down the button, the timing starts. After the timing delay, the light comes on.
Release the button, the timing is happening. After timing delay, the light goes off.
, we are going to demonstrate how to use the delay on single-function time relay GRT8-A1 from Geya Electric.
For this relay, we control the timing delay by powering up. After power on, the load is connected after the set delay time. Power off, the load is
disconnected.
we could wire a button to A1 and S terminal for reset. After the timing delay is applied, press the button to reset, and the relay starts over to delay again.
Product Applications：Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps, and fans (10 functions, 10-time ranges, multi-voltage).
Function Features：
（1）10 functions:
5-time functions controlled by supply voltage
– 4-time functions controlled by control input
– 1 function of latching relay
（2）Comfortable and well-arranged function and time-range set by rotary switches.
（3）Time scale 0.1 s – 10 days divided into 10 ranges.
（4）Relay status is indicated by LED.
（5）1-MODULE, DIN rail mounting.
