## Friday, November 3, 2023

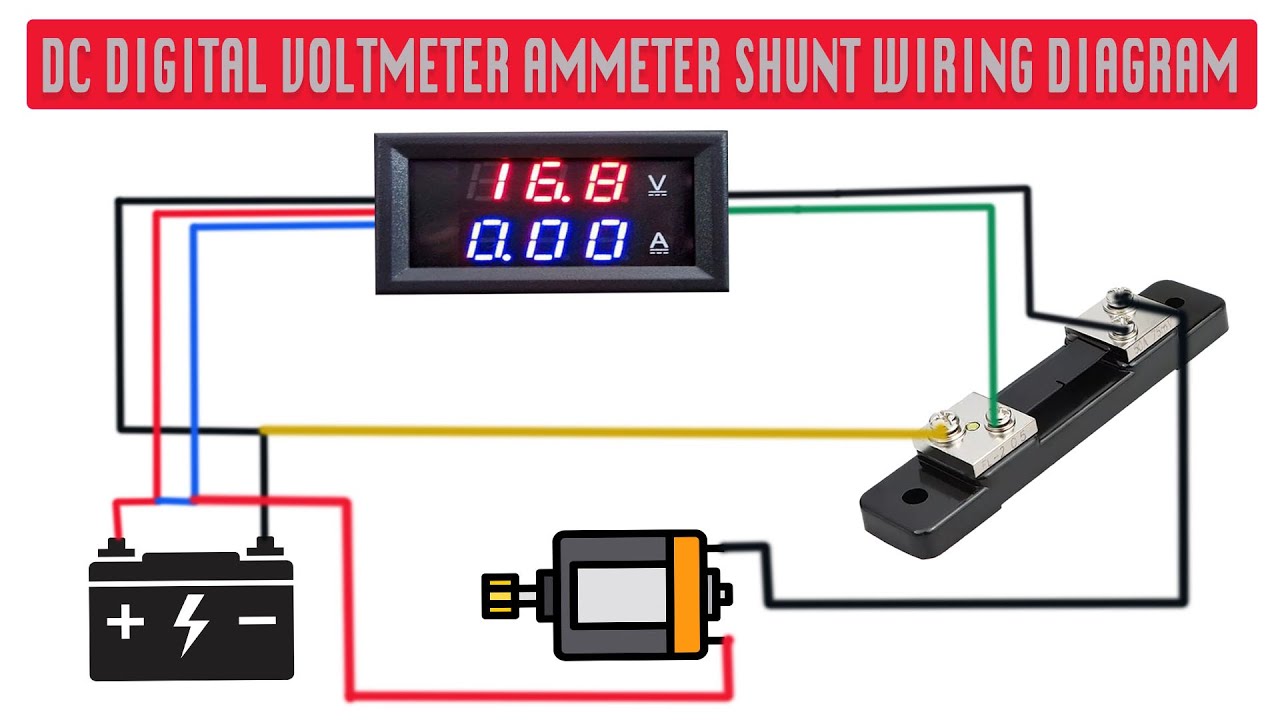

DIGITAL VOLT METER/AMPERE METER CONNECTION

Today I am going to show you how to setup / wire / install this digital Volt / Amp meter, This video shows how to use the internal shunt for current measuring, I will do a follow up video if requested for external shunt.

A voltmeter is an instrument used for measuring electric potential difference between two points in an electric circuit. Analog voltmeters move a pointer across a scale in proportion to the voltage of the circuit; Digital voltmeters give a numerical display of voltage by use of an analog-to-digital converter.

In this video, we show the correct method of using and connecting wires of 0-100V 0-10A Mini Digital Volt-Amp Meter panel DSN-VC288. Using this voltmeter-ammeter, you can measure voltage from 0V to 100V and ampere from 0A to 10A and see it digitally on the blue and red panel.

In this video, we have used a LED and a 12-volt fan to measure and display the ampere consumption. We also used a 12 volt adapter and a 24 volt adapter to display the voltage.

Connecting the wires of this voltmeter-ammeter module is a bit difficult and must be done carefully, which we tried to show in this video.

A voltmeter is an instrument used for measuring electrical potential difference between two points in an electric circuit. An ammeter is a measuring device used to measure the electric current in a circuit. Digital Voltmeter Ammeter DC 0-100V 10A.
