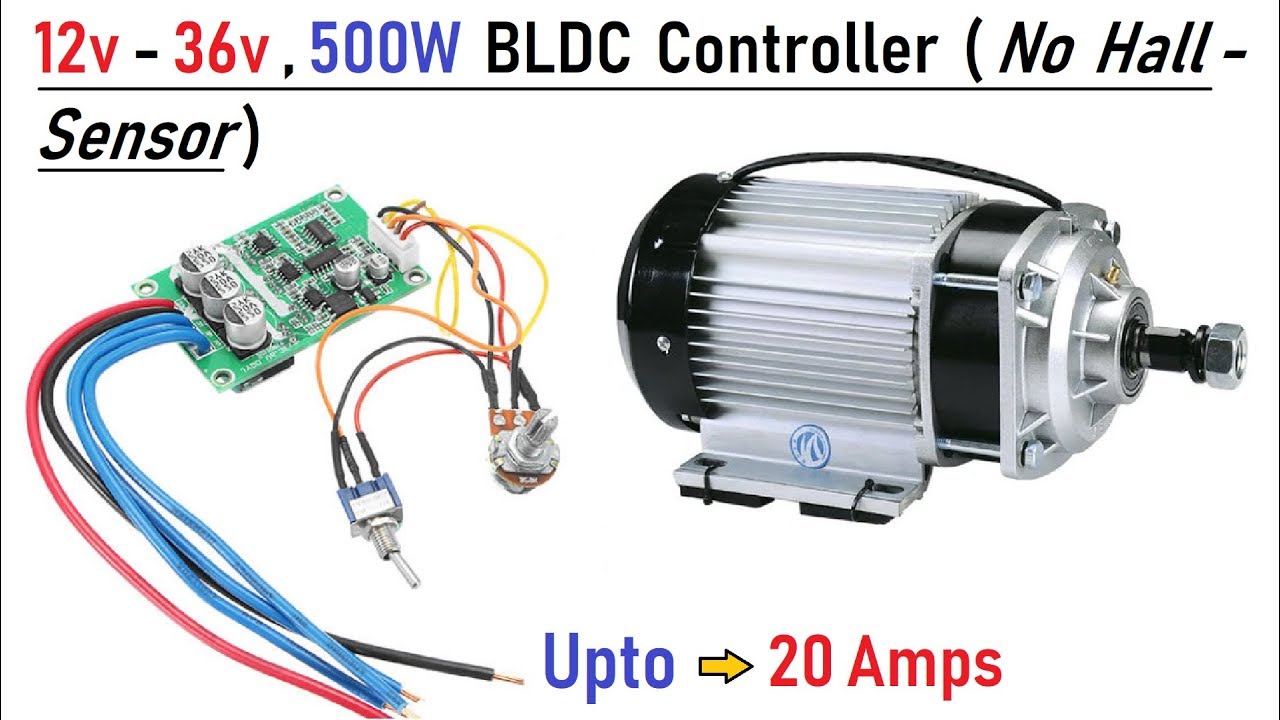

on vidio 12v to 36v 500w Brushless DC Motor Controller - Run BLDC Motors without Hall Sensor


 Connecting a brushless DC motor (BLDC) to a 3-phase sensor & sensorless BLDC controllers.  This video shows the phase and hall sensor wiring connection of a 36V 500W BLDC motor and 12V-36V BLDC controllers.  The video also shows a BLDC motor tear-down to expose the hall sensor circuit inside the motor and phase winding configuration.

Phase wiring:


Controllers               Motor

MA-------------------------Yellow wire

MB-------------------------Blue wire

MC-------------------------Green wire

P-  -------------------------Black wire (battery line)

P+ -------------------------Red wire   (battery line)

Hall sensor wiring

Controllers             Motor

5v--------------------------Red wire (battery line)

Ha-------------------------Yellow wire

Hb-------------------------Blue wire

Hc-------------------------Green wire

GND----------------------Black wire (battery line)


 Connecting a brushless DC motor (BLDC) to a 3-phase sensor & sensorless BLDC controllers.  This video shows the phase and hall sensor wiring connection of a 36V 500W BLDC motor and 12V-36V BLDC controllers.  The video also shows a BLDC motor tear-down to expose the hall sensor circuit inside the motor and phase winding configuration.

Phase wiring:


Controllers               Motor

MA-------------------------Yellow wire

MB-------------------------Blue wire

MC-------------------------Green wire

P-  -------------------------Black wire (battery line)

P+ -------------------------Red wire   (battery line)

Hall sensor wiring

Controllers             Motor

5v--------------------------Red wire (battery line)

Ha-------------------------Yellow wire

Hb-------------------------Blue wire

Hc-------------------------Green wire

GND----------------------Black wire (battery line)
